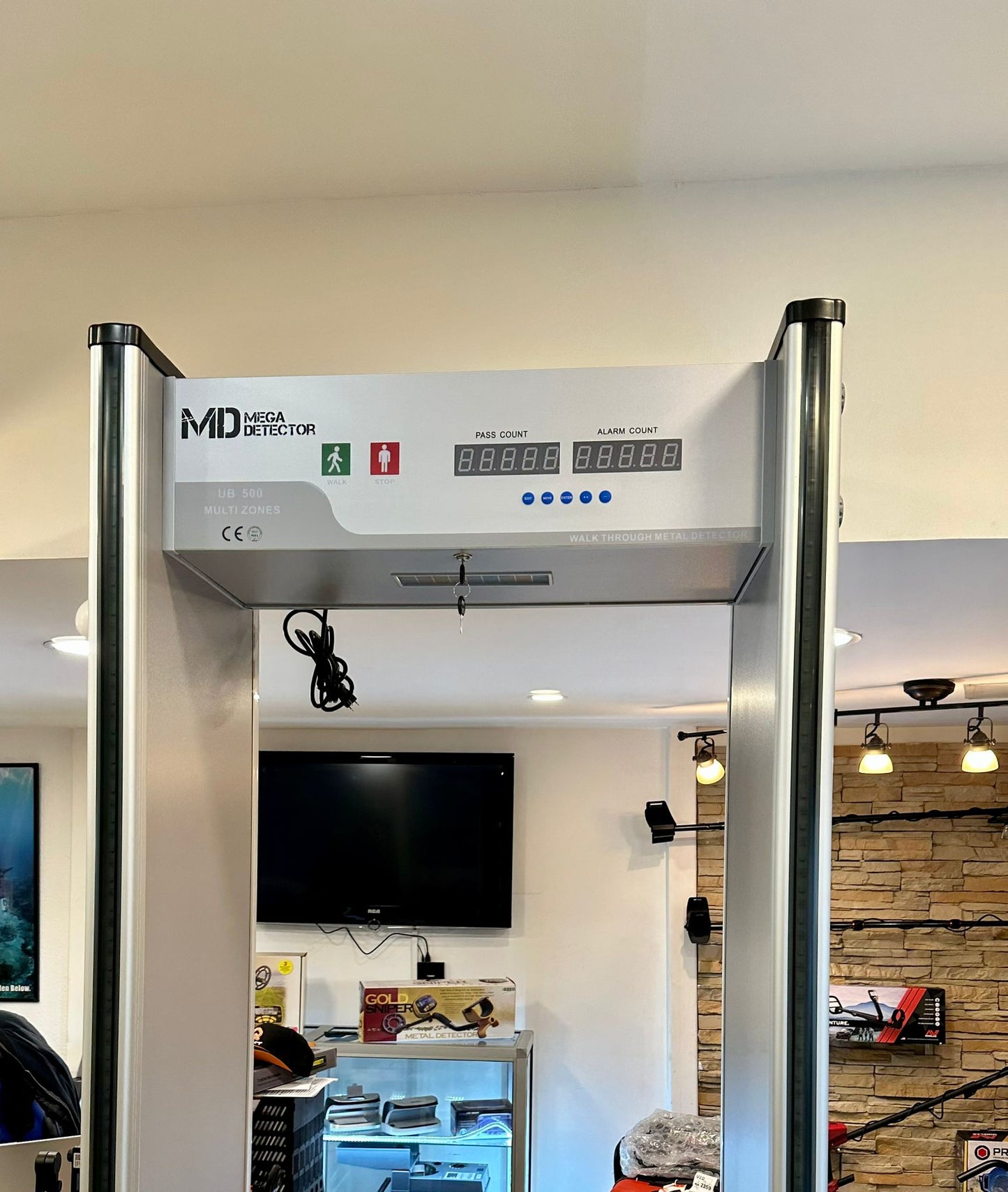

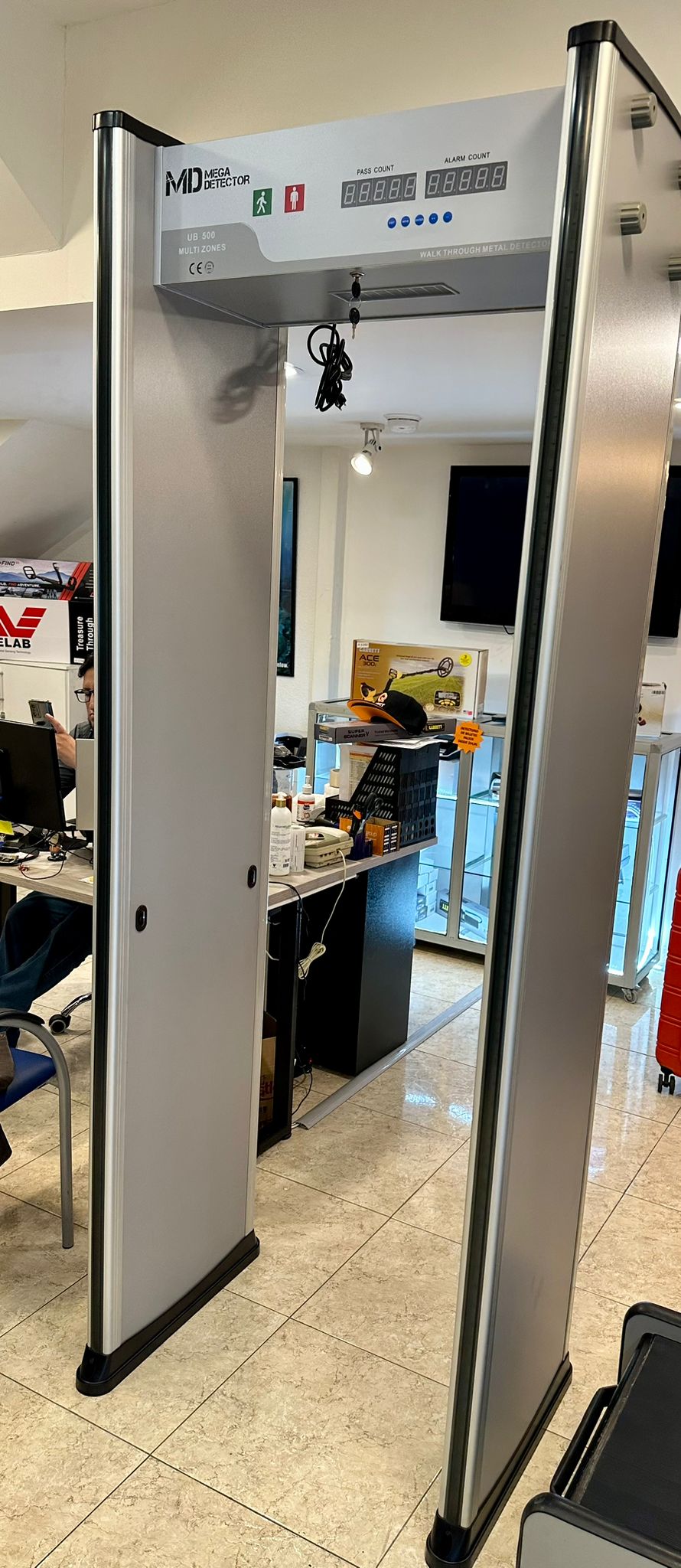

MegaDetector Walk-Through Metal Detector Door Frame MD50018Z of 18 Zones

MegaDetector Walk-Through Metal Detector Door Frame MD50018Z of 18 Zones

$2,650.00 USD
$2,650.00 USD
Sale Sold out
  • Full body 100% metal detector for maximum security. The md500 walk through metal detector is designed for high traffic locations. It is a full body 100% metal detector, which means it can detect metal objects hidden under clothes. It is a perfect choice for airports, schools, courthouses, prisons, and other high-risk locations.
  • 18 sensitive zones and adjustable sensitivity. The metal detector has 18 sensitive zones and adjustable sensitivity, which can be adjusted according to different security levels and locations. The md500 walk through metal detector is easy to operate and maintain.
  • Audio and visual alert. When metal objects are detected, the md500 walk through metal detector will alert users with a flashing light and an alarm sound. The alarm sound can be turned on or off according to your needs.
  • One-year warranty. The md500 walk through metal detector It is safe and reliable. We provide a one-year warranty for the md500 walk through metal detector. If you have any questions about the product, please feel free to contact us.

    Technical Data

    MD500 walkthrough metal detector is a highly versatile metal detection case door, with 18 zone and adjustable sensitivity making it widely used in airports, stations, shopping malls, and other security inspection places. this product. The detection structure uses an electromagnetic field to detect the metal objects in the body. It consists of a host, a high-frequency signal generator, a signal receiver, and an infrared sensor. It uses sound and light to alarm indicate that the metal objects in the body exceed a certain amount. It is used for security inspection. It can speed up the detection efficiency during the project.


  • MegaDetector Walk-Through Metal Detector Door Frame MD50018Z of 18 Zones UXB500 18 ZONES
    Brand Name MegaDetector
    Model Number UXB500
    Material PVC panel with fireproof material
    Product name Short Range IR Temp Door Frame Walk Through Metal Detector
    Infrared passing speed 60/min

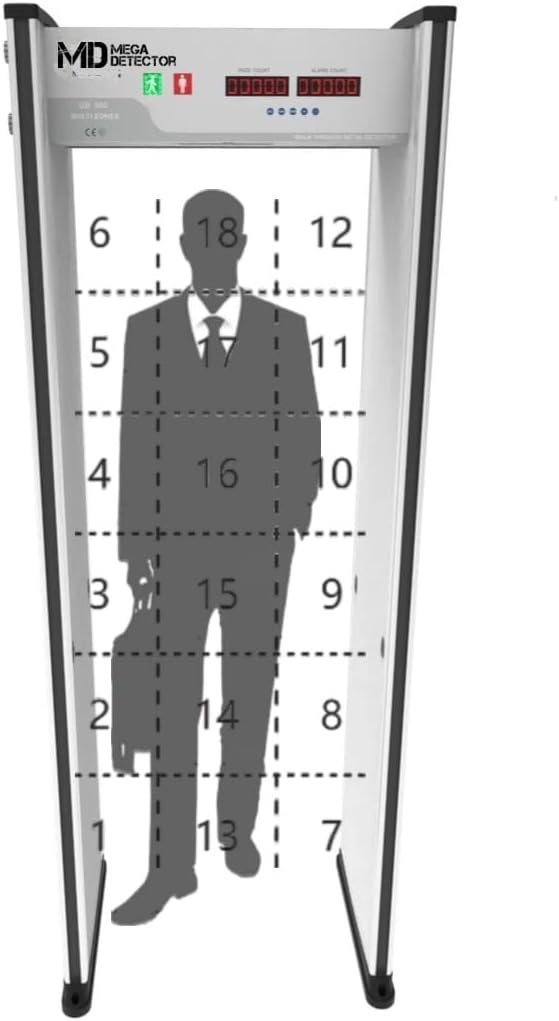

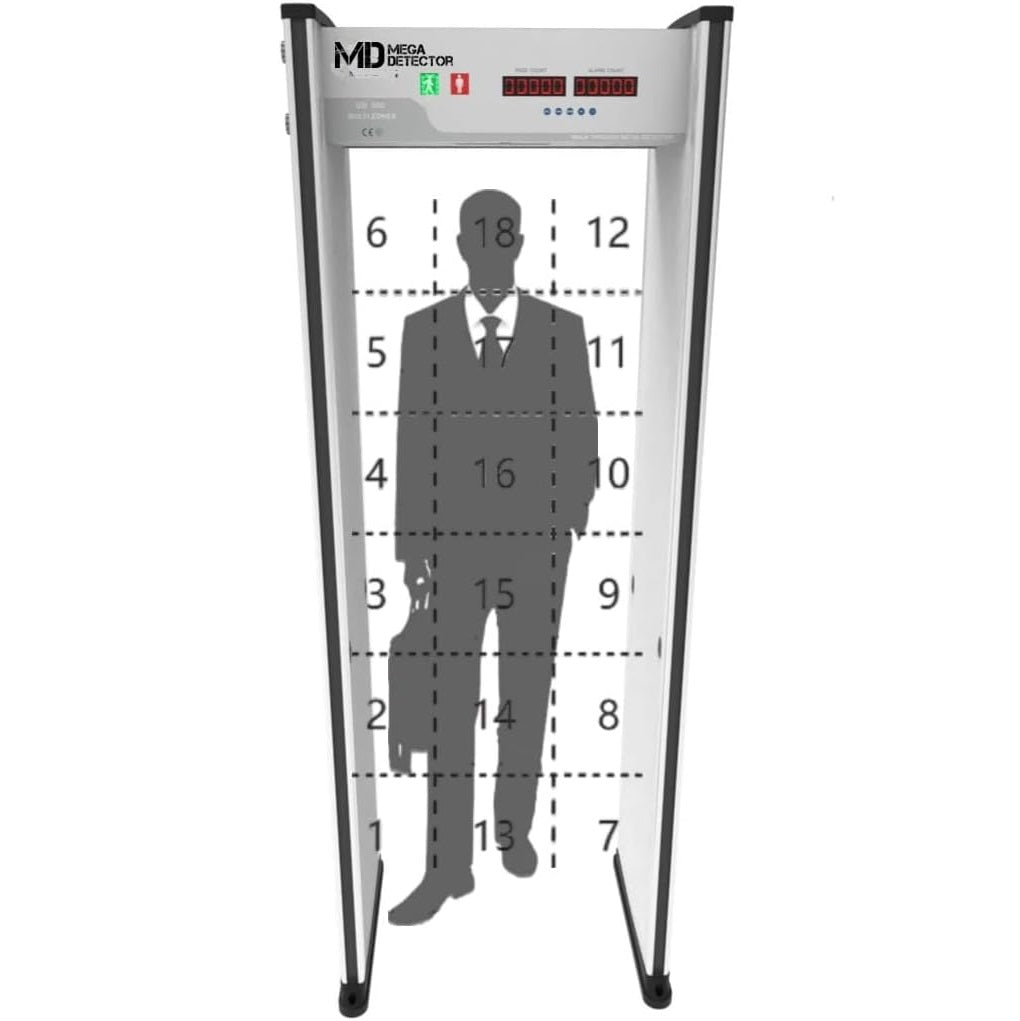

    Detection Zones 18 zones
    Sensitivity Each zone 0-99, 100 levels adjustable
    Detection mode Bilateral Transmission Bilateral reception
    Infrared beam mode One-way, two-way, can be closed
    Language Support multi-language
    Alarm Sound & LED alarm
    Smalles detectable unit 25 cents coin
    Enviromental Signal Interference Detection Yes
    Visual Displays Pass count & Alarm count (5 Digit LED Display)
    Frequency 5.9K-8.6KHz continuously adjustable
    Power AC100-240V 50/60Hz 1A <12W
    Weatherproofing IP53, Temp -20°C to +45°C
    Use enviroment Indoor
    Material PVC panel with fireproof material

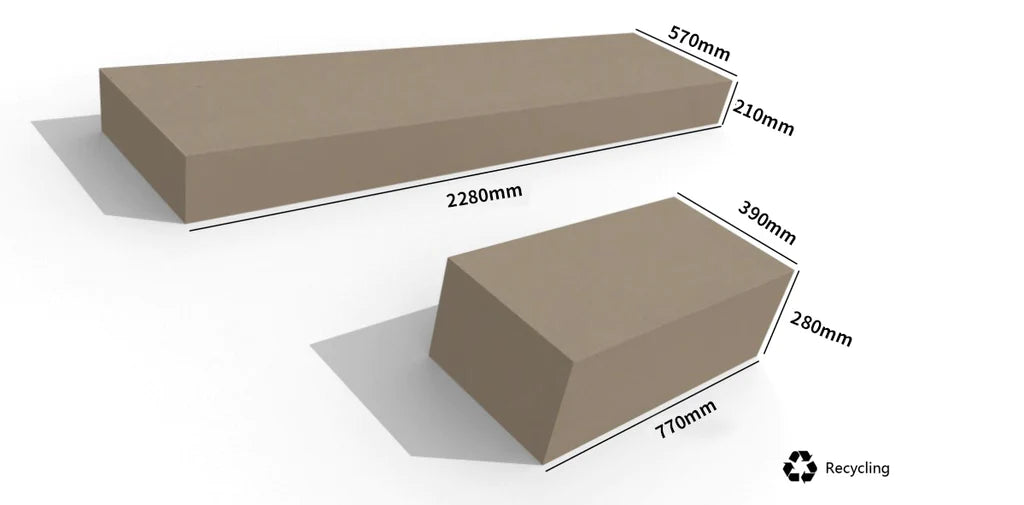

    door panels size 2260*650*260mm *1ctn
    control unit size 780*390*250 mm*1ctn
    Gross weight 65KG
    Warranty 24 months
    Certification C E,ISO9001,ROHS
    Easy install
    Safe for the human body
    Technical support
